Quick Details

  • Place of Origin: Liaoning, China (Mainland)
  • Brand Name: DKE
  • Model Number: DEPG0143
  • Type: Graphic, e paper
  • Size: 1.43 Inch
  • Contrast: high
  • Resolution(mm): 128(H)x296(V)
  • Outline(mm)(HxV):: 18.3(H) x 42.7(V)
  • Active Area (mm): 14.46(H) x 33.45
  • Pixel Pitch: 0.113 x 0.113
  • I/O Pin: 12PIN
  • Module Weight(g): 0.87±0.1

Packaging & Delivery

Packaging Details cartons



E-paper is a new generation display, the advantages are as follows:


      a. High Contrast. very clear display even under strong sunlight.

      b. Energy Saving. consuming power only while refreshing and changing the display contents.

      c. Environment Green. it can be taken as a replacement of normal paper.

      d. Thin as normal paper. the min thickness can reach 0.1mm, flexible and easy to bend.


      As an experienced LCD, LCM and Epaper manufacturer, we have plentiful fich experience to develop products.

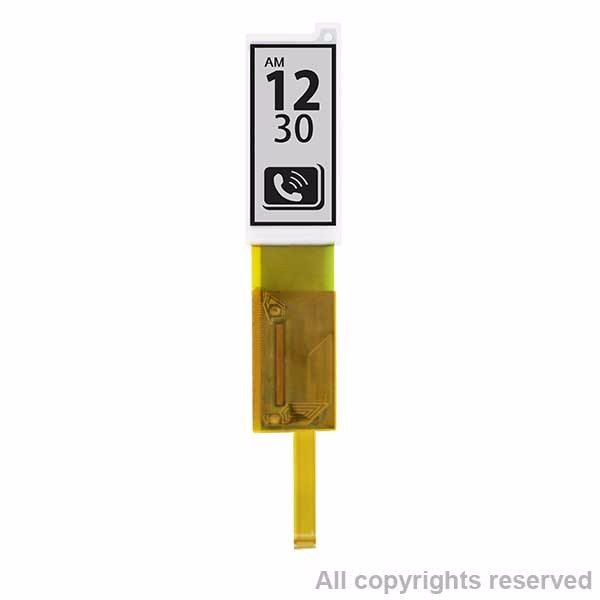

1.43’ Epaper of Standard graphic type

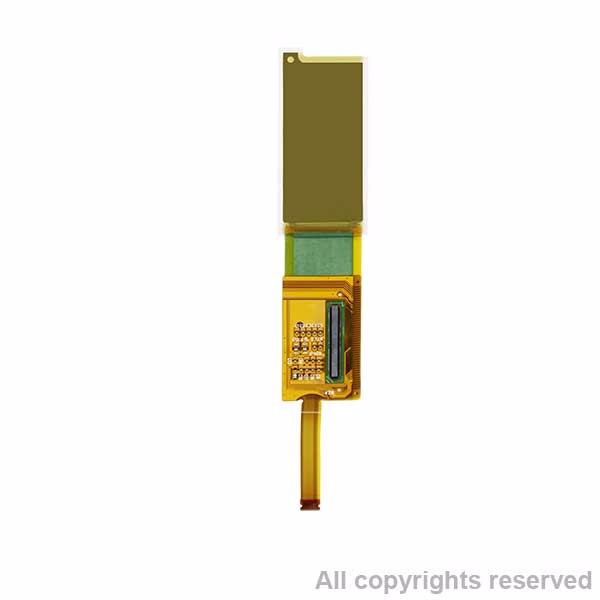

DEPG0143 is a reflflective electrophoretic E-ink technology display module based on active matrix TFT and plastic substrate. The plastic substrate is protected by an outer covering, which is a part of the display. It has 1.43” active area with 128 x 296 pixels, the display is capable to display images at 2 gray levels (1 bits) depending on the display controller and the associated waveform file it used.


Resolution(mm)128 (H) ×296(V)
Active Area(mm)14.464 (H)×33.448 (V)

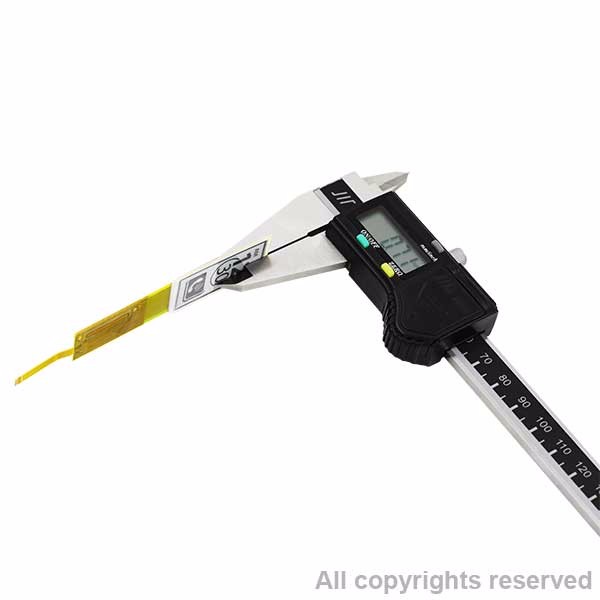

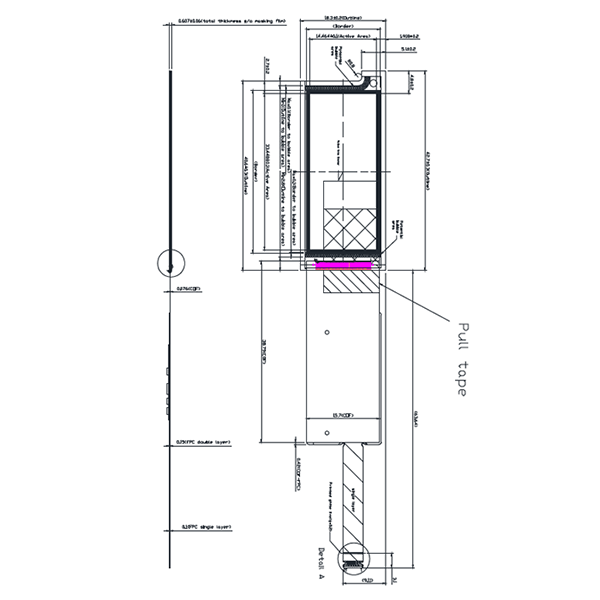

Outline Dimension(mm)18.3(H)×42.7(V)×0.607(D)
Pixel Pitch(mm)0.113 (H)×0.113 (V)
Module Weight(g)0.87±0.1
I/O Pin / Connector12PIN













DKE invents and manufactures Electronic Paper and Monochrome industrial LCD displays since 2005.


With more than 500 employees, we sell our products and solutions to the fields of electricity,     automotive electronics, smart wear and smart home applications, etc. All the products comply with high quality standards and are appreciated by a variety of different market throughout the world.


In 2010,DKE became the first partner of “E-Ink Holdings” to develop the E-paper products with E-ink technology-based in China. To meet the increasing demands of market development, we built a new production line for E-paper with the capacity of 50K-100K per day and a professional R&D team to better serve customers .


Our success is the result of our ongoing commitment to research and development,high quality products and services,and our ability to meet the demands of an increasingly advanced technological industry.




Production line


DKE is one of the authorised partner of E-ink.
We built a professional R&D team to develop new products and provide better service.
Many standard graphic EPD can be chosen,and customized design welcomed.
FPL:E-INK film PS film:Protect film,water proofand Anti-UV.



Patents &Quality certification

Applied for 10 national-level invention patents, including 4 E-paper patents
Certificated ISO9001:2008

Purchased long-term Consulting service from SGS corp. building up TS16949 system
ISO9001system, 14000 environment system.



Q: What's the max size can be produced?

A: The max size of the customized design E-Paper in segment type is 596x396 in mm.


Q: What's the operating temperature?

A: For graphic type,the operating temperature is 0~+50C

For segment type,the operating temperature is -10C-+60C.


Q:  If the EPD is water proof and Anti-UV?

A: Yes,Because of the PS film on both sides of EPD,the display is water proof and Anti-UV, but we suggest you to protect the products from the condition of high humidity and UV light for long time to increase the lifetime .


Q: What's the MOQ?

A: Normally,the MOQ is 3000USD.


Q: What's the lead time for samples and mass production?

A: 4-5 weeks for samples and 6-8 weeks for mass production.


Q: What's the maximum refresh rate?

A: Normally,in order get the best contrast ratio,we suggest you to refresh the EPD at least one time per 6 hours.


Q: For custom design,if DKE will sign the NDA?

A: Yes,for custom design EPD,we can sign NDA with customer.




To better servce our clients, we establish long-term cooperation with serveral international electronic component distributors among the world. If you do look for e-paper displays, you are more than welcome to call us or email us.
