6.8 inch color e-paper display in standard graphic type and e-ink e-paper display

FOB Reference Price:Get Latest Price
  • >=1000 Pieces
    US $58.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
DKE
Model Number:
DEPG0680
Contrast:
high
Interface:
8 bit parallel data bus
Resolution(mm):
1440 (H)*1080(V)
Active Area(mm):
103.7 (H)*138.2 (V)
Outline Dimension(mm):
119.7(W)*158.5(H)*1.84(D)
Module Weight(g):
54( more or less 5.0)
I/O Pin / Connector:
40PIN
White R%:
47 (Typ)
CR:
17 ( Typ)
Grayscale:
16 greyscale
Supply Ability
Supply Ability:
50000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Carton
Port
Dalian, China




E-paper is a new generation display, the advantages are as follows:



      a. High Contrast. very clear display even under strong sunlight.

      b. Energy Saving. consuming power only while refreshing and changing the display contents.

      c. Environment Green. it can be taken as a replacement of normal paper.

      d. Thin as normal paper. the min thickness can reach 0.1mm, flexible and easy to bend.



      As an experienced LCD, LCM and Epaper manufacturer, we have plentiful fich experience to develop products.

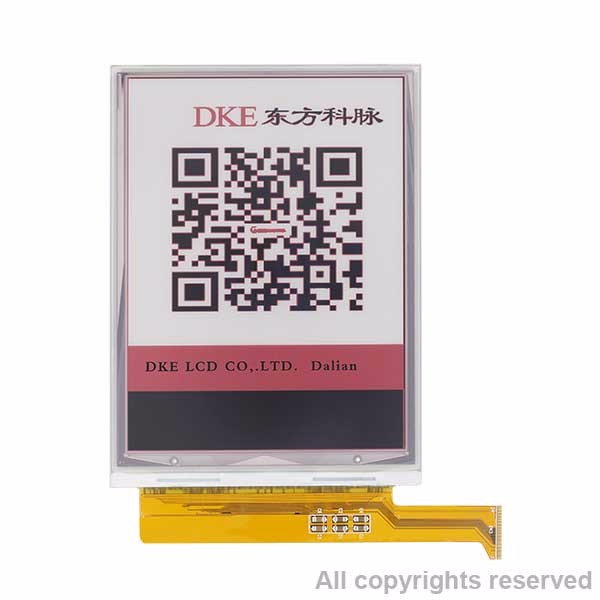

6.8’ Epaper of Standard graphic type

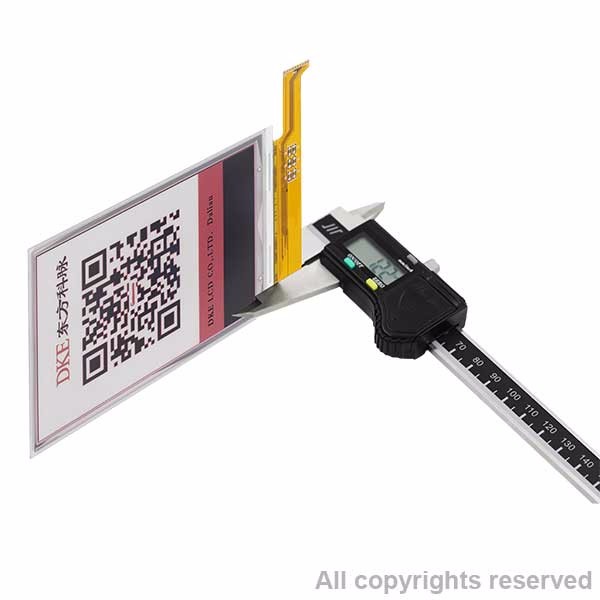

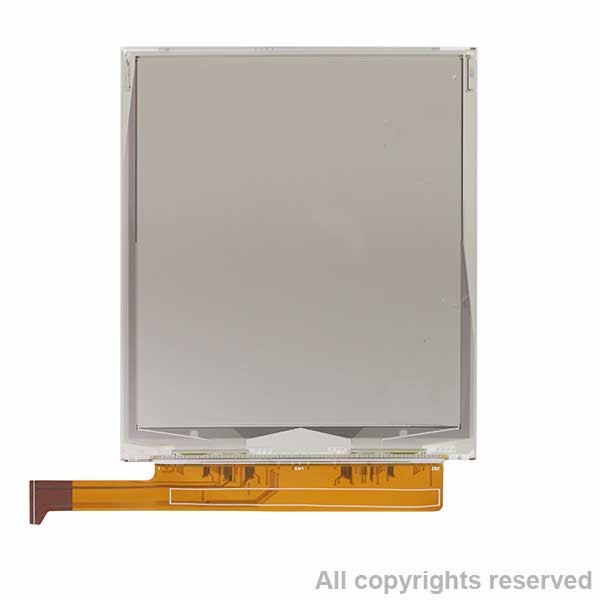

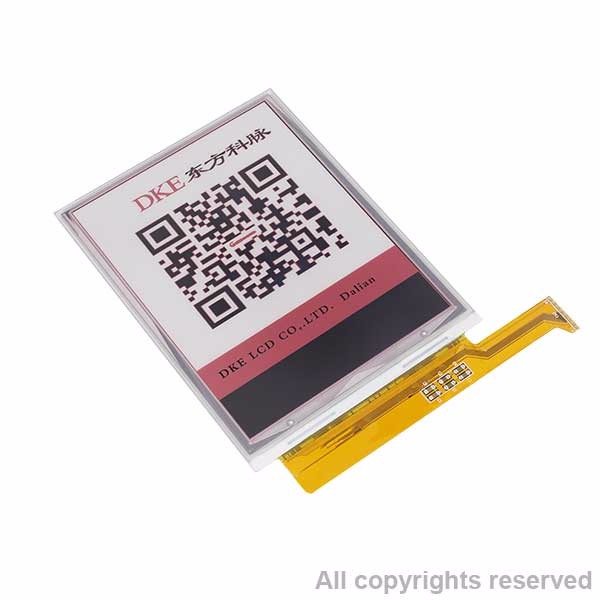

DEPG0680 is a reflective electrophoretic DKE® technology display module based on active matrixTFT substrate. It has 6.8” active area with 1440 x 1080 pixels, the display is capable to display imagesat 2-16 gray levels (1-4 bits) depending on the display controller and the associated waveform file itused.



SIZE6.8
Interface8 bit parallel data bus
Resolution(mm)1440 (H)×1080(V)
Active Area(mm)103.7 (H) ×138.2 (V)

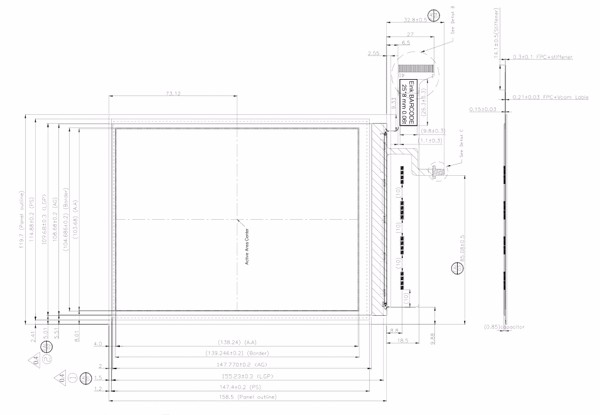

Outline Dimension(mm)119.7(W) ×158.5(H) ×1.84(D)
Grayscale16 greyscale
Module Weight(g)3.36±0.5
I/O Pin / Connector40PIN
CR17 ( Typ)
ContrastHigh

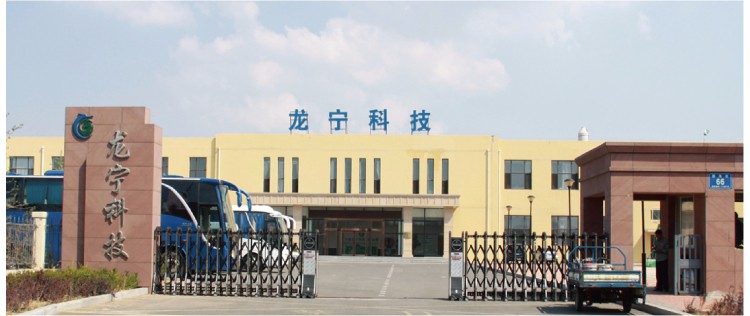

DKE invents and manufactures Electronic Paper and Monochrome industrial LCD displays since 2005.



With more than 500 employees, we sell our products and solutions to the fields of electricity,     automotive electronics, smart wear and smart home applications, etc. All the products comply with high quality standards and are appreciated by a variety of different market throughout the world.



In 2010,DKE became the first partner of “E-Ink Holdings” to develop the E-paper products with E-ink technology-based in China. To meet the increasing demands of market development, we built a new production line for E-paper with the capacity of 50K-100K per day and a professional R&D team to better serve customers .



Our success is the result of our ongoing commitment to research and development,high quality products and services,and our ability to meet the demands of an increasingly advanced technological industry.

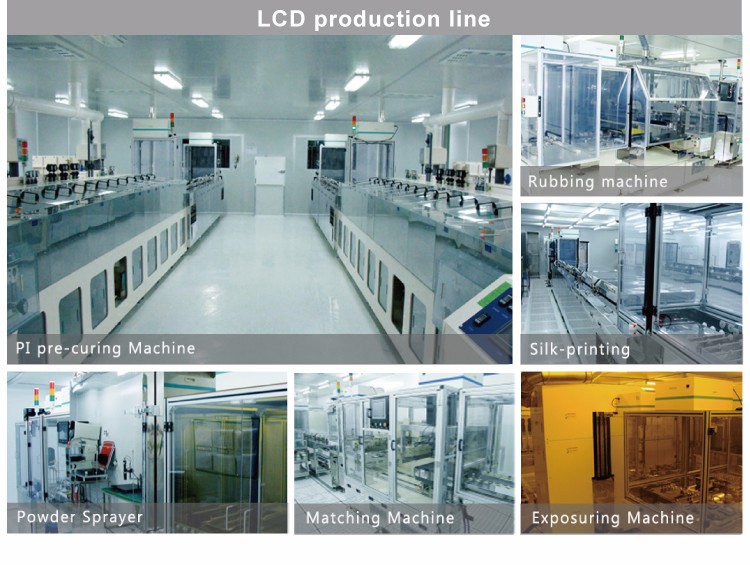

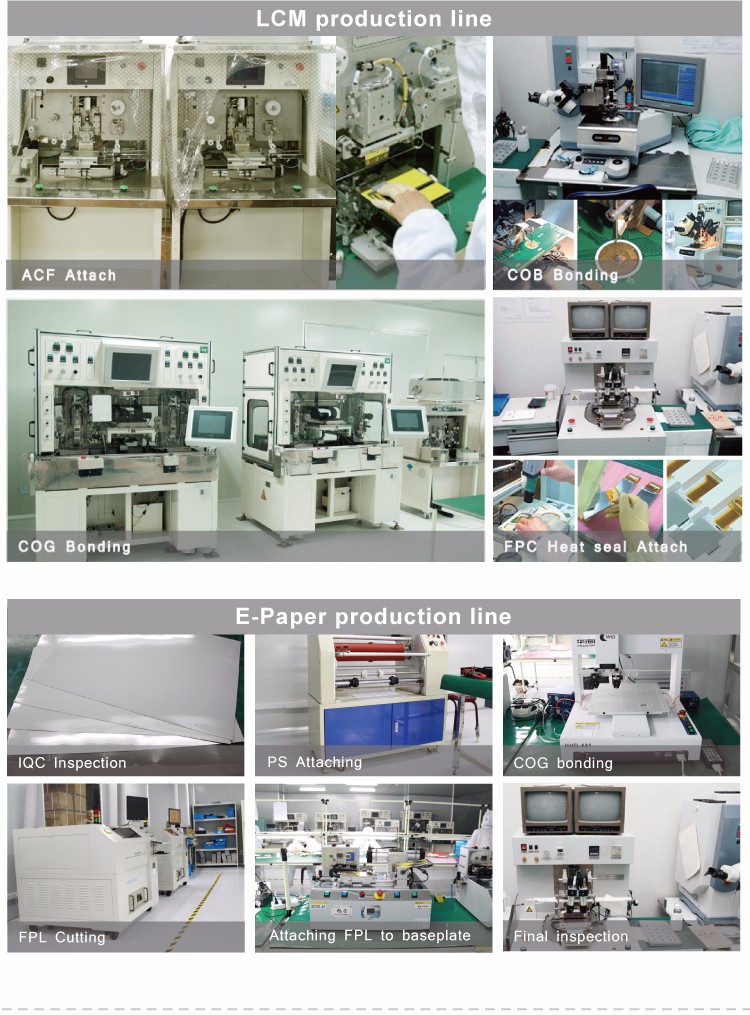

Production line



DKE is one of the authorised partner of E-ink.
We built a professional R&D team to develop new products and provide better service.
Many standard graphic EPD can be chosen,and customized design welcomed.
FPL:E-INK film PS film:Protect film,water proofand Anti-UV.






Patents &Quality certification


Applied for 10 national-level invention patents, including 4 E-paper patents
Certificated ISO9001:2008


Purchased long-term Consulting service from SGS corp. building up TS16949 system
ISO9001system, 14000 environment system.






Q: What's the max size can be produced?

A: The max size of the customized design E-Paper in segment type is 596x396 in mm.



Q: What's the operating temperature?

A: For graphic type,the operating temperature is 0~+50C

For segment type,the operating temperature is -10C-+60C.



Q:  If the EPD is water proof and Anti-UV?

A: Yes,Because of the PS film on both sides of EPD,the display is water proof and Anti-UV, but we suggest you to protect the products from the condition of high humidity and UV light for long time to increase the lifetime .



Q: What's the MOQ?

A: Normally,the MOQ is 3000USD.



Q: What's the lead time for samples and mass production?

A: 4-5 weeks for samples and 6-8 weeks for mass production.



Q: What's the maximum refresh rate?

A: Normally,in order get the best contrast ratio,we suggest you to refresh the EPD at least one time per 6 hours.



Q: For custom design,if DKE will sign the NDA?

A: Yes,for custom design EPD,we can sign NDA with customer.








To better servce our clients, we establish long-term cooperation with serveral international electronic component distributors among the world. If you do look for e-paper displays, you are more than welcome to call us or email us.
